Requirement
Define the final component face, axis and position at the receiving tool, permitted contact or support surfaces and acceptable component condition. State the usable delivery and demand pattern required by that process.
Component feeding and sortation
Feeder Tracks and Presentation Tooling Specification Checklist
Prepare feeder-track specifications with component tolerances, contact limits, final datum, track transitions, buffer, escapement, downstream demand and recovery records.
Define the component range and the final face, axis and position required by the receiving tool. Supply current drawings and production-condition samples, permitted support features and marking limits. Describe transitions, buffer needs, part-present sensing and single-part release, including what happens at no demand, a blocked destination and interrupted transfer.
Use the geometry and variation brief and accepted-delivery evidence plan. Separate confirmed requirements, assumptions, variant settings and issues still needing representative trials.

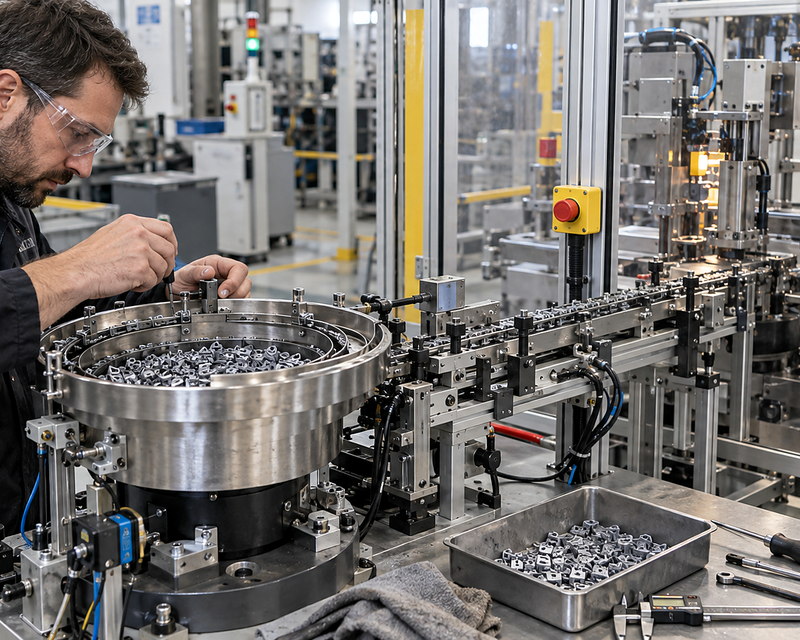

On the production floor
Describe what the complete process needs to achieve — Feeder Tracks and Presentation Tooling
Plan feeder tracks and presentation tooling around real component variation, bulk condition, orientation, usable delivery rate and the downstream interface. Discuss representative part trials with Sorting Solutions. A clear brief should state the operating range for component geometry and variation for feeder tracks & presentation tooling and your requirements for jam, damage and recovery acceptance checks.
Discuss your application
Your checklist
Application, operation and results
Product, part or pack
Operation and interfaces
Results and support
Write measurable requirements
For Feeder Tracks and Presentation Tooling, turn each checklist item into a range and a test
Range
Include normal component tolerances, finish, lubrication and supplier variations. Describe track transitions, accumulation and the full, draining and nearly empty conditions, with variant settings and interchangeable tooling identified.
Check
Trial the complete track and release sequence against agreed final-position and condition checks. Include no demand, a blocked destination, restart and interrupted transfer, retaining accepted delivery, jams, marking and controlled-recovery results.
For feeder tracks and presentation tooling, use “shall” only for a requirement that can be demonstrated. Keep preferences, assumptions, provisional line connections and future options clearly separate.
Connected responsibilities
Be clear about what sits around your feeder tracks and presentation tooling
Your final feeder tracks and presentation tooling scope must also account for escapement and downstream pick interface, jam, damage and recovery acceptance checks, current regulations and the conditions at your site.
- Sample trials must include normal, marginal and supplier-variant components.
- Quoted feeder output is not the same as usable delivery at the downstream process.
- Fragile, flexible, magnetic or entangling parts may need a different presentation method.
