Define the final datum
Show the face, axis and position required at the pick or assembly point. State which component features may support or locate the part, including surfaces that must not be marked.
Component feeding and sortation

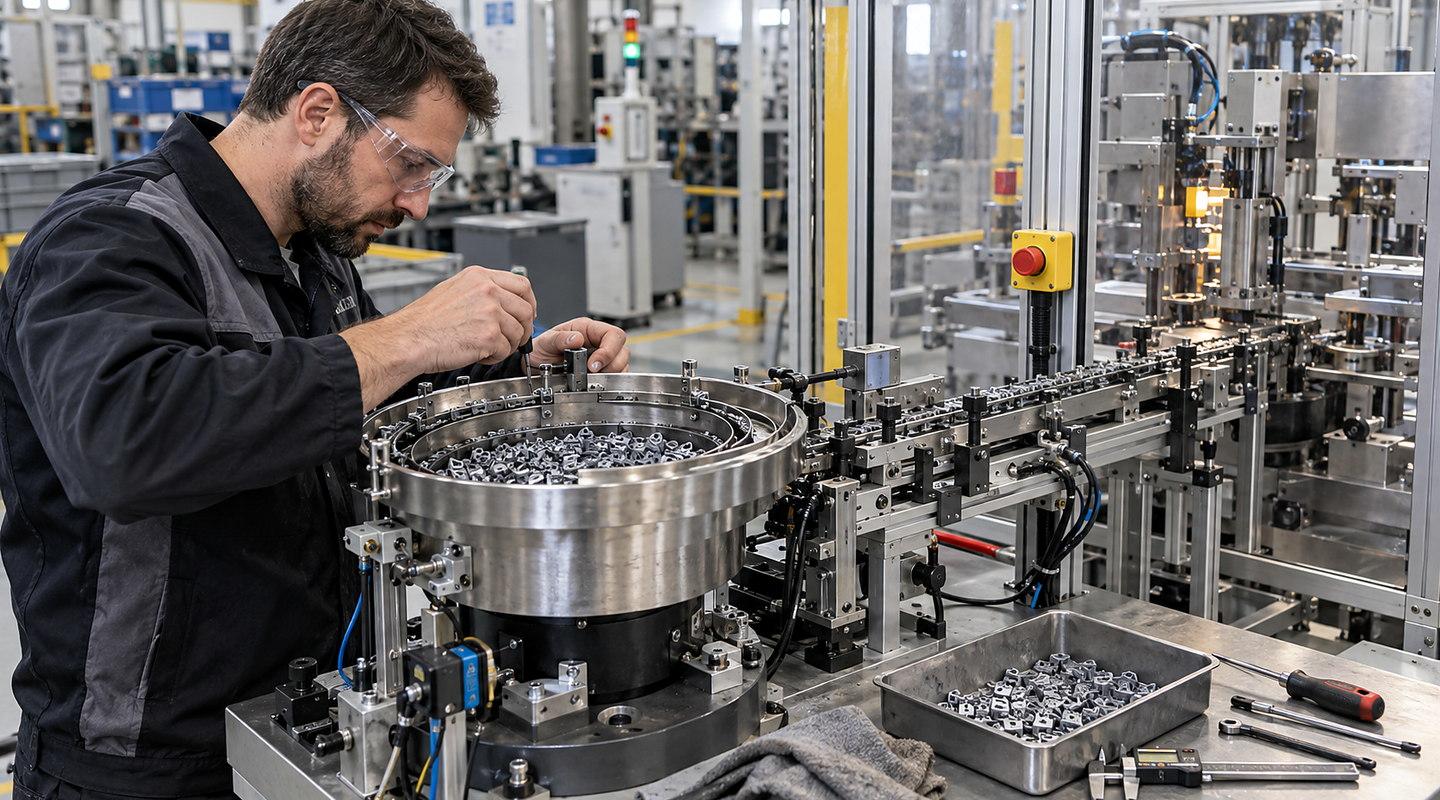

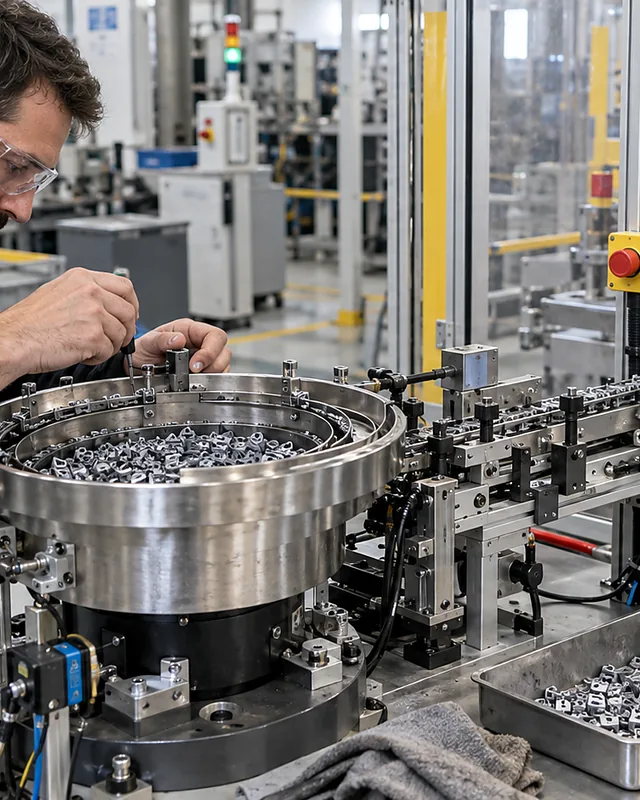

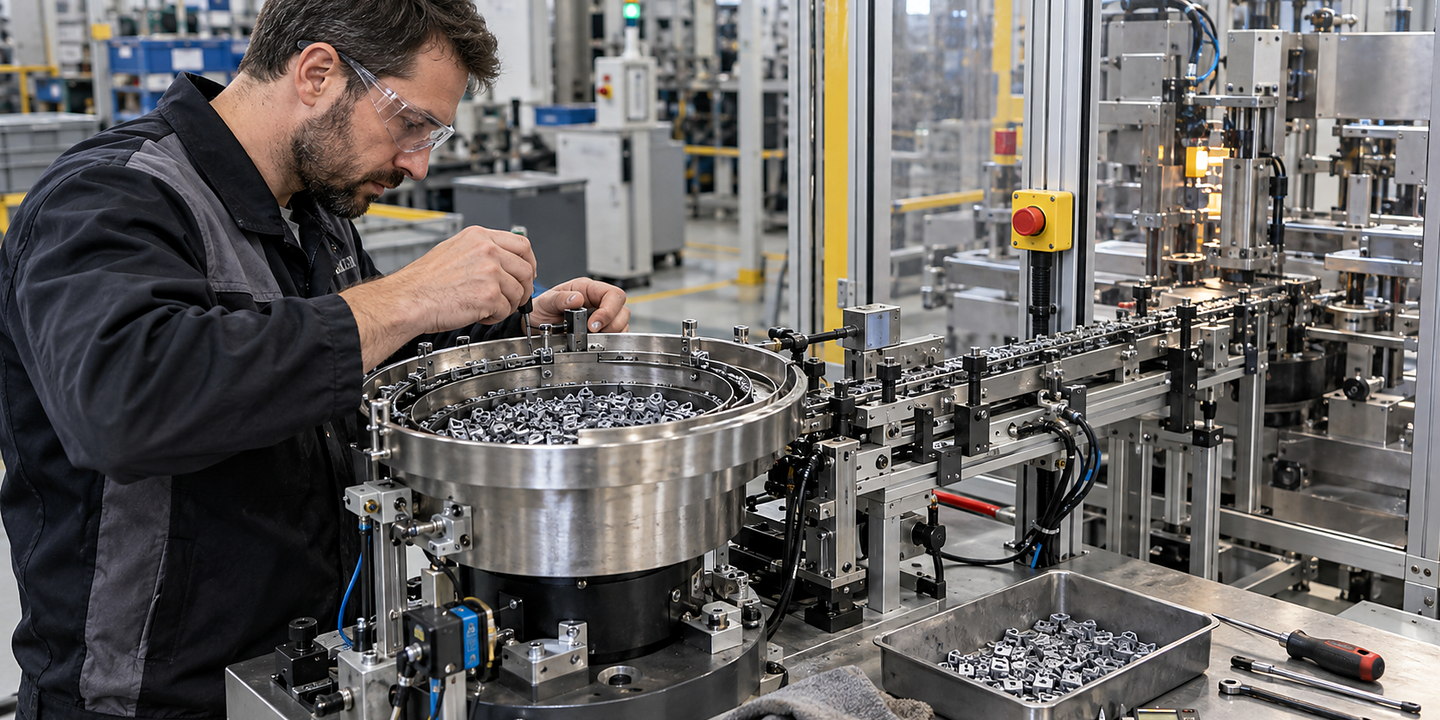

Feeder Track Tooling and Component Presentation
Plan feeder tracks and presentation tooling around real component variation, bulk condition, orientation, usable delivery rate and the downstream interface. Discuss representative part trials with Sorting Solutions.
Speak directly with Sorting Solutions about feeder tracks and presentation tooling.
Quick answer
What determines the track geometry for our component and final pick point?
Start with the part drawing, dimensional variation and the orientation needed by the receiving tool. Identify features that can support or locate the component without unacceptable marking. Trial transitions, accumulation and the escapement together, checking that the final part position remains repeatable as the track fills and empties.
Application decisions
Design the track backwards from the receiving tool
A feeder track is successful when the receiving machine gets one usable component in the required position, not merely when parts travel along the rail.
Include dimensional variation
Provide drawings and parts spanning the normal tolerance range. Check that both the smallest and largest conditions can pass, remain oriented and reach the required final position.
Examine every transition
Review changes from bowl to track, between track sections and into the escapement. Small discontinuities or changes in support may behave differently when the track is full or nearly empty.
Control accumulation pressure
Define how much buffer is required and what happens when the receiving machine stops. Trial a full track and restart to assess overlapping, wedging and the force passed into the leading component.

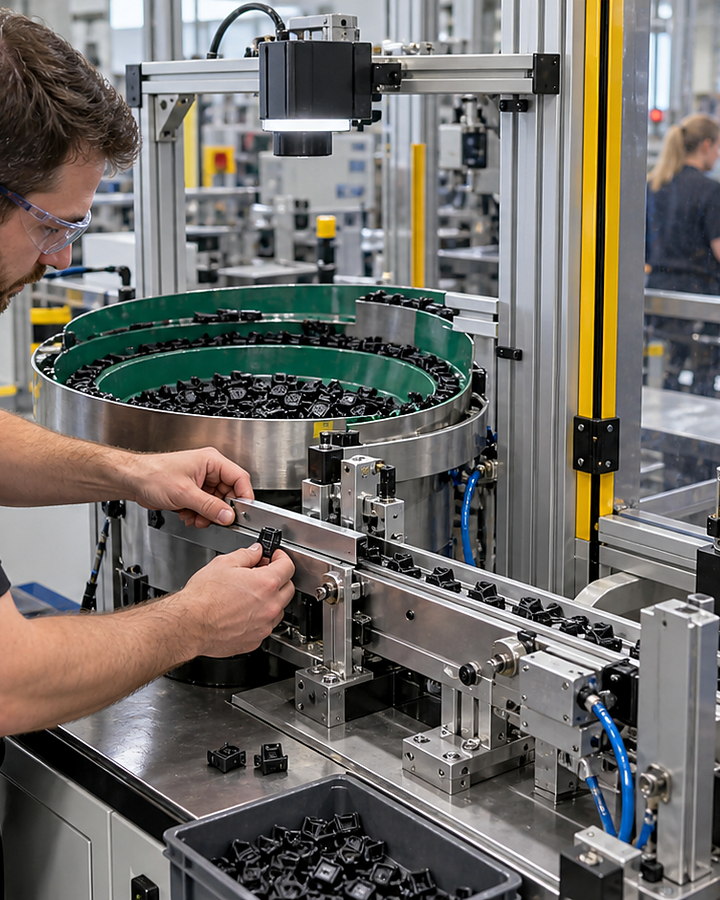

Prove one-part release
Show the receiving tool envelope and part-present sensing. The escapement should be assessed for single release, no demand, blocked destination and recovery after an interrupted transfer.
Make change parts identifiable
For several variants, list the adjustable settings and interchangeable pieces. Use a controlled setup record so a correct track is not combined with the wrong escapement or receiving-tool arrangement.
Applications
Two useful starting points for feeder tracks and presentation tooling
The right choice changes with component geometry and variation for feeder tracks & presentation tooling, surface, fragility and entanglement behaviour, your line layout and required results.

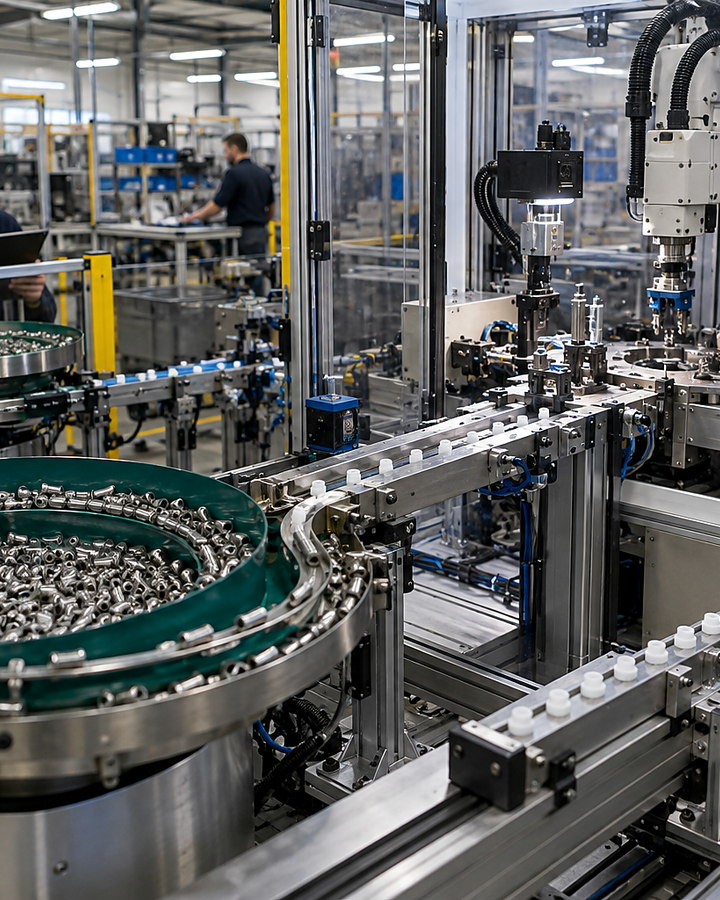

Production review
Evaluate tooling through fill, drain and restart conditions
- 01
Use production-condition components
Assess the normal finish, lubrication and supplier variation instead of only cleaned demonstration parts. Record changes in feeding behaviour alongside the sample condition.
- 02
Inspect the delivered part
Check the final orientation and any damage after the full track and release sequence. A part that reaches the end but cannot be picked consistently is not an accepted delivery.
- 03
Decide whether a fixed track is appropriate
Where the part family changes too widely or bulk contact damages it, compare a different presentation route in the selection guide. Keep the downstream datum and accepted-delivery requirement common to each proposal.
Use the feeder track tooling specification checklist to prepare the application, then agree the acceptance checks and production records before comparing proposals.
Important limits
Know what needs a separate check
- Sample trials must include normal, marginal and supplier-variant components.
- Quoted feeder output is not the same as usable delivery at the downstream process.
- Fragile, flexible, magnetic or entangling parts may need a different presentation method.
Your final solution for feeder tracks and presentation tooling must reflect the law, current standards and site-specific risks that apply to your installation.
Diagnose a track fault before changing the tooling
A jam at the same location is useful evidence, but it does not automatically mean the track needs widening or more drive. Record the part condition and where the first deviation occurs before an authorised change.
